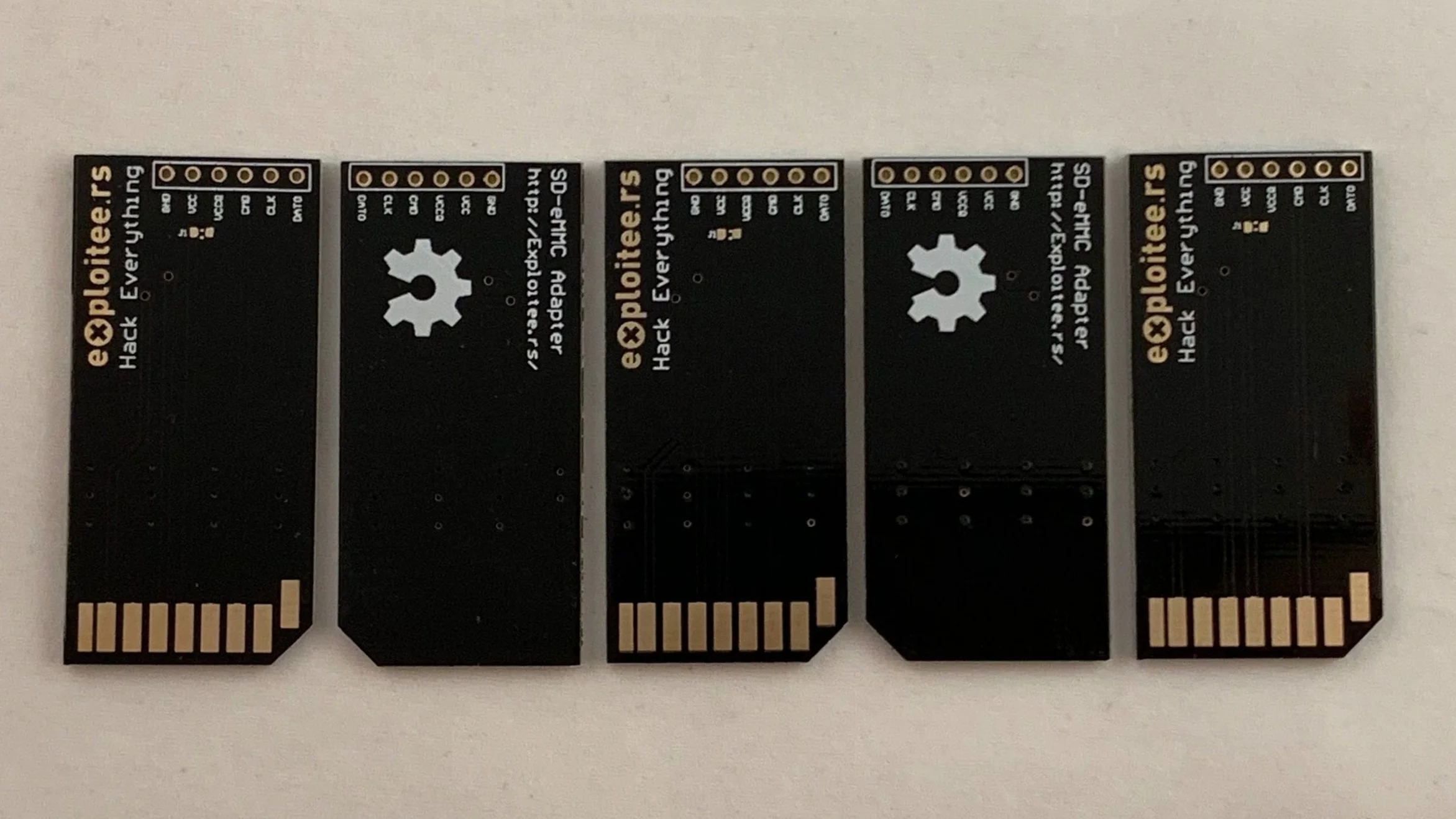

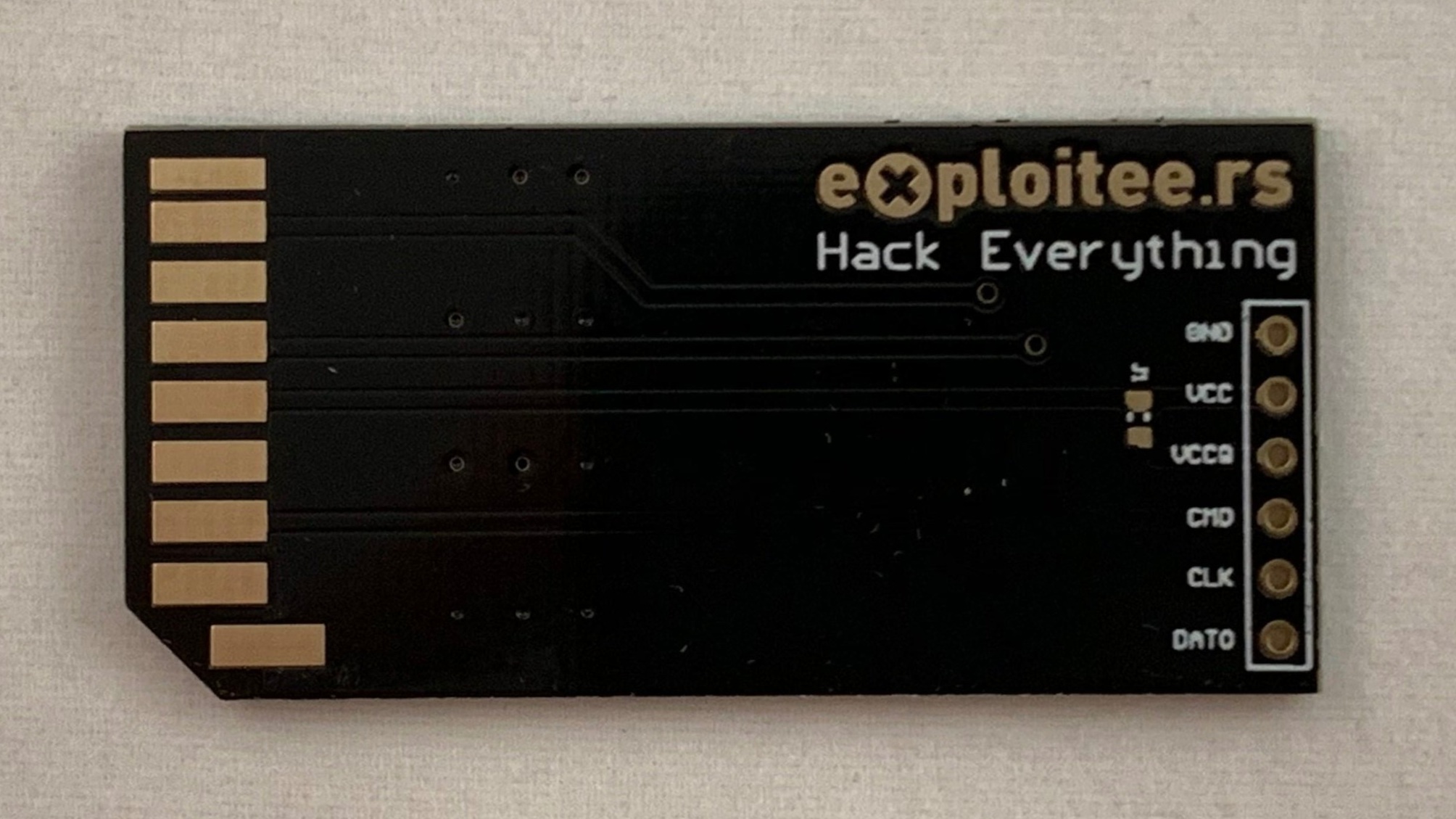

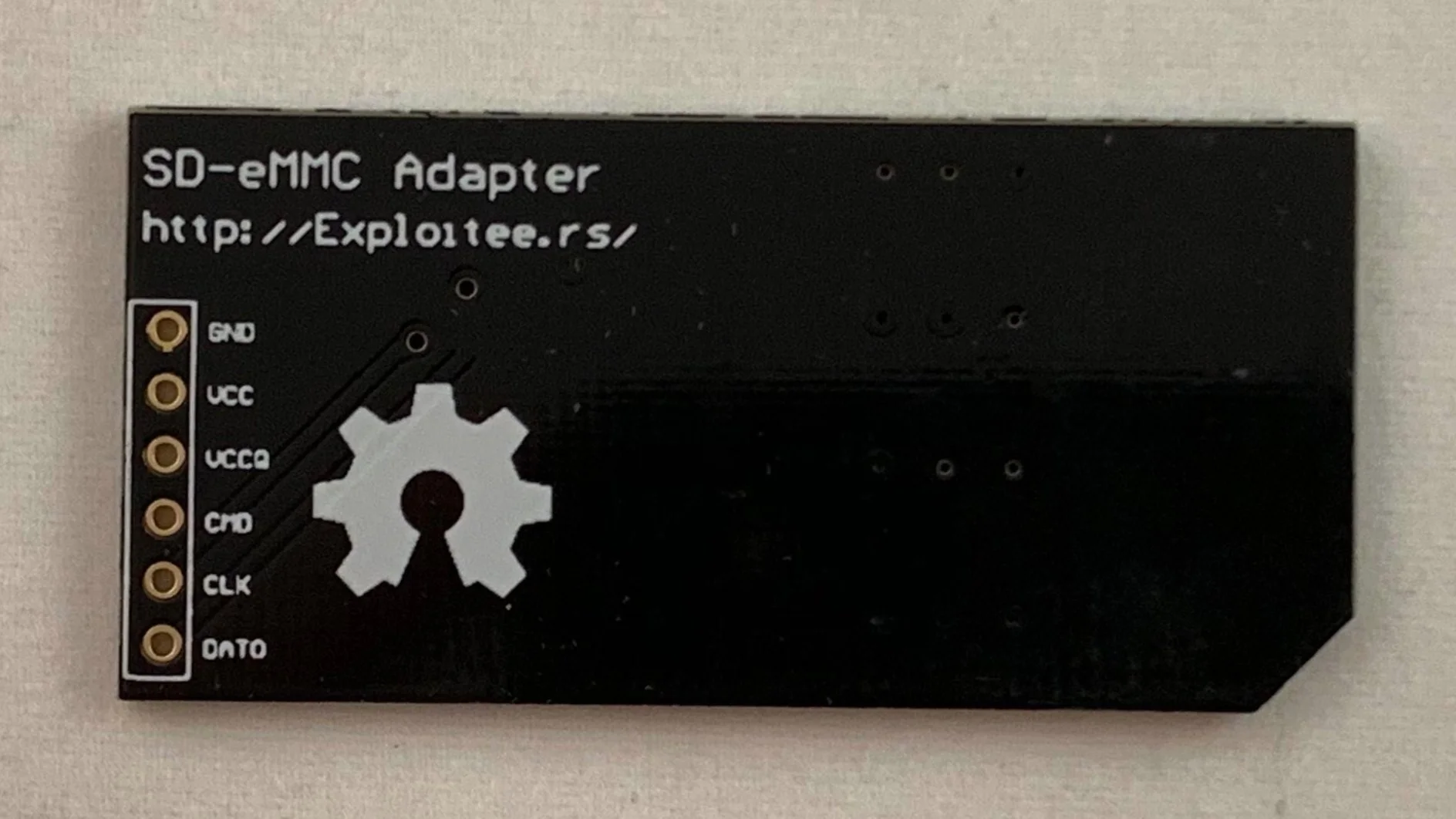

SD/eMMC Breakout Board
This SD/eMMC breakout can be used to connect to 3.3v eMMC’s which do not require a logic level translator. This breakout is in the form factor of an SD card to allow it to be easily inserted into an SD Card reader/writer.
This is our older V1 design and does not work with our new V2 style header.
More info on the breakout can be found on our wiki Exploitee.rs as well as in our whitepaper from the Blackhat Security Conference.
This board measures: 50mm x 24.6mm x 1.6mm
